luna::vulkan::vulkanCmdPool Class Reference

abbstraction class around the vulkan commandbuffer and pool to introduce increased workflow safety and usability and to decrease bugs. all a VkCommandBuffer has been changed out by virtualCmdBuffer type. More...

#include <vulkanCmdPool.h>

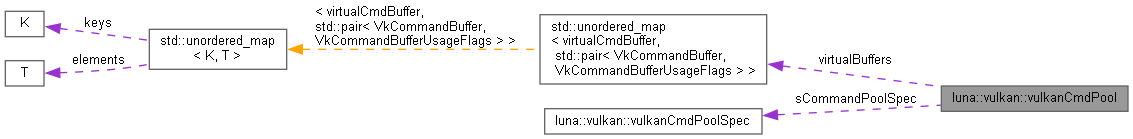

Collaboration diagram for luna::vulkan::vulkanCmdPool:

Public Member Functions
VkCommandBuffer	vulkanCmdPool::operator[] (const virtualCmdBuffer commandBuffer)
VkCommandBuffer	operator= (const virtualCmdBuffer commandBuffer)
	vulkanCmdPool (const vulkanCmdPoolSpec &commandBufferSPec)
	vulkanCmdPool constructor More...
virtual	~vulkanCmdPool ()
	commandPool destructor, does nothing at the moment More...
VkResult	createNewBuffer (virtualCmdBuffer *commandBuffer, const uint32_t &commandBufferCount, const VkCommandBufferLevel &commandBufferLevel)
	createNewBuffer creates a proteceted commandBuffer that is bound to the pool it is created with. More...
VkResult	begin (virtualCmdBuffer commandBuffer, const VkCommandBufferUsageFlags &usageFlags)
	starts recording a commandBuffer. More...
VkResult	end (virtualCmdBuffer commandBuffer)
	stops recording the commandBuffer. More...
VkResult	flush (const VkQueue &queue, const uint64_t &submitCount, const commandPoolSubmitInfo *pCommandPoolSubmitInfo, const VkFence &waitFence)
	flush executes all flushed/submitted commandBuffers. More...
void	freeCommandBuffer (virtualCmdBuffer *pCommandBuffers, uint32_t count)
	frees commandbuffers to be able to rerecord them. More...
void	resetCommandBuffer (const virtualCmdBuffer &commandBuffer)

Private Attributes
std::unordered_map< virtualCmdBuffer, std::pair< VkCommandBuffer, VkCommandBufferUsageFlags > >	virtualBuffers
VkCommandPool	commandPool
vulkanCmdPoolSpec	sCommandPoolSpec

Detailed Description

abbstraction class around the vulkan commandbuffer and pool to introduce increased workflow safety and usability and to decrease bugs. all a VkCommandBuffer has been changed out by virtualCmdBuffer type.

Constructor & Destructor Documentation

vulkanCmdPool()

luna::vulkan::vulkanCmdPool::vulkanCmdPool

(

const vulkanCmdPoolSpec &

commandBufferSPec

)

vulkanCmdPool constructor

Parameters

vulkanCmdPoolSpec

commandPoolSpecefication;

~vulkanCmdPool()

luna::vulkan::vulkanCmdPool::~vulkanCmdPool ( )

virtual

commandPool destructor, does nothing at the moment

Member Function Documentation

begin()

VkResult luna::vulkan::vulkanCmdPool::begin	(	virtualCmdBuffer	commandBuffer,
		const VkCommandBufferUsageFlags &	usageFlags
	)

starts recording a commandBuffer.

Parameters

virtualCommandBuffer	commandBuffer handle.
const	VkCommandBufferUsageFlags& usageFlags

createNewBuffer()

VkResult luna::vulkan::vulkanCmdPool::createNewBuffer	(	virtualCmdBuffer *	commandBuffer,
		const uint32_t &	commandBufferCount,
		const VkCommandBufferLevel &	commandBufferLevel
	)

createNewBuffer creates a proteceted commandBuffer that is bound to the pool it is created with.

Parameters

virtualCmdBuffer*	a command buffer array pointer or std::vector pointer.
const	uint32_t& commandBufferCount number of commandBuffers to be created.
const	VkCommandBufferLevel& commandBufferLevel specifies the commandBuffer type.

end()

VkResult luna::vulkan::vulkanCmdPool::end

(

virtualCmdBuffer

commandBuffer

)

stops recording the commandBuffer.

Parameters

virtualCommandBuffer

commandBuffer handle.

flush()

VkResult luna::vulkan::vulkanCmdPool::flush	(	const VkQueue &	queue,
		const uint64_t &	submitCount,
		const commandPoolSubmitInfo *	pCommandPoolSubmitInfo,
		const VkFence &	waitFence
	)

flush executes all flushed/submitted commandBuffers.

Parameters

VkQueue	queue
submiCount	the amount of commandPoolSubmitInfos
const	commandPoolSubmitInfo* pCommandPoolSubmitInfo

freeCommandBuffer()

void luna::vulkan::vulkanCmdPool::freeCommandBuffer	(	virtualCmdBuffer *	pCommandBuffers,
		uint32_t	count
	)

frees commandbuffers to be able to rerecord them.

Parameters

pCommandBuffers	a command buffer array pointer or std::vector pointer.
count

operator=()

VkCommandBuffer luna::vulkan::vulkanCmdPool::operator= ( const virtualCmdBuffer  commandBuffer )

inline

resetCommandBuffer()

void luna::vulkan::vulkanCmdPool::resetCommandBuffer

(

const virtualCmdBuffer &

commandBuffer

)

vulkanCmdPool::operator[]()

VkCommandBuffer luna::vulkan::vulkanCmdPool::vulkanCmdPool::operator[]

(

const virtualCmdBuffer

commandBuffer

)

Member Data Documentation

commandPool

VkCommandPool luna::vulkan::vulkanCmdPool::commandPool

private

sCommandPoolSpec

vulkanCmdPoolSpec luna::vulkan::vulkanCmdPool::sCommandPoolSpec

private

virtualBuffers

std::unordered_map<virtualCmdBuffer, std::pair<VkCommandBuffer, VkCommandBufferUsageFlags> > luna::vulkan::vulkanCmdPool::virtualBuffers

private

---

The documentation for this class was generated from the following files:

• C:/Users/robbe/source/repos/lolrobbe2/luna/luna/src/core/vulkan/device/vulkanCmdPool.h
• C:/Users/robbe/source/repos/lolrobbe2/luna/luna/src/core/vulkan/device/vulkanCmdPool.cpp
