luna::renderer::textureAtlas Class Reference

textureAtlas api. More...

#include <texture.h>

Inheritance diagram for luna::renderer::textureAtlas:

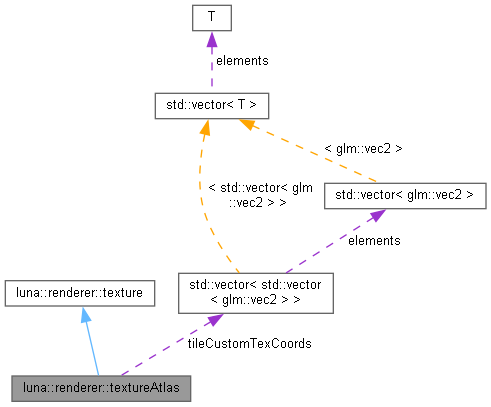

Collaboration diagram for luna::renderer::textureAtlas:

Public Member Functions
virtual	~textureAtlas ()=default
virtual uint32_t	getTileWidth ()=0
virtual uint32_t	getTileWidth (const uint16_t &xIndex, const uint16_t &yIndex)=0
virtual uint32_t	getTileHeight ()=0
virtual uint32_t	getTileHeight (const uint16_t &xIndex, const uint16_t &yIndex)=0
virtual glm::vec2	addTile (const glm::vec2 &dimensions)=0
virtual glm::vec2	addTile (const uint32_t &width, const uint32_t &height)=0
virtual glm::vec2	getTileDimensions (const glm::vec2 &textureindex)=0
virtual glm::vec2	getTextureUv (const glm::vec2 &textureindex)=0
Public Member Functions inherited from luna::renderer::texture
virtual	~texture ()=default
virtual uint32_t	getWidth () const =0
virtual uint32_t	getHeight () const =0
virtual const std::string &	getPath () const =0
virtual void	setData (void *data, uint32_t size)=0
virtual void	bind (uint32_t slot=0) const =0
virtual bool	isLoaded () const =0
void	setDestroy (const bool &destroy)
void	setUv (const glm::vec2 &_uvStart, const glm::vec2 &_uvEnd)
std::vector< glm::vec2 >	getUv ()
uint64_t	handle ()

Private Attributes
uint32_t	tileWidth
uint32_t	tileHeight
std::vector< std::vector< glm::vec2 > >	tileCustomTexCoords

Additional Inherited Members
Static Public Member Functions inherited from luna::renderer::texture
static ref< texture >	create (const std::string &filePath)
static ref< texture >	create (const uint64_t &handle, const glm::vec2 &dimensions)
Protected Attributes inherited from luna::renderer::texture
bool	destroy = true
uint64_t	_handle
void *	data
uint32_t	width
uint32_t	height
glm::vec2	uvStart = {0.0f,0.0f}
glm::vec2	uvEnd = { 1.0f,1.0f }

Detailed Description

textureAtlas api.

See also

texture

Note

see specific platform implementation for explenation with functions

Constructor & Destructor Documentation

~textureAtlas()

virtual luna::renderer::textureAtlas::~textureAtlas ( )

virtualdefault

Member Function Documentation

addTile() [1/2]

virtual glm::vec2 luna::renderer::textureAtlas::addTile ( const glm::vec2 &  dimensions )

pure virtual

Implemented in luna::vulkan::vulkanTextureAtlas.

addTile() [2/2]

virtual glm::vec2 luna::renderer::textureAtlas::addTile ( const uint32_t &  width, const uint32_t &  height  )

pure virtual

Implemented in luna::vulkan::vulkanTextureAtlas.

getTextureUv()

virtual glm::vec2 luna::renderer::textureAtlas::getTextureUv ( const glm::vec2 &  textureindex )

pure virtual

Implemented in luna::vulkan::vulkanTextureAtlas.

getTileDimensions()

virtual glm::vec2 luna::renderer::textureAtlas::getTileDimensions ( const glm::vec2 &  textureindex )

pure virtual

Implemented in luna::vulkan::vulkanTextureAtlas.

getTileHeight() [1/2]

virtual uint32_t luna::renderer::textureAtlas::getTileHeight ( )

pure virtual

Implemented in luna::vulkan::vulkanTextureAtlas.

getTileHeight() [2/2]

virtual uint32_t luna::renderer::textureAtlas::getTileHeight ( const uint16_t &  xIndex, const uint16_t &  yIndex  )

pure virtual

Implemented in luna::vulkan::vulkanTextureAtlas.

getTileWidth() [1/2]

virtual uint32_t luna::renderer::textureAtlas::getTileWidth ( )

pure virtual

Implemented in luna::vulkan::vulkanTextureAtlas.

getTileWidth() [2/2]

virtual uint32_t luna::renderer::textureAtlas::getTileWidth ( const uint16_t &  xIndex, const uint16_t &  yIndex  )

pure virtual

Implemented in luna::vulkan::vulkanTextureAtlas.

Member Data Documentation

tileCustomTexCoords

std::vector<std::vector<glm::vec2> > luna::renderer::textureAtlas::tileCustomTexCoords

private

tileHeight

uint32_t luna::renderer::textureAtlas::tileHeight

private

tileWidth

uint32_t luna::renderer::textureAtlas::tileWidth

private

---

The documentation for this class was generated from the following file:

• C:/Users/robbe/source/repos/lolrobbe2/luna/luna/src/core/rendering/texture.h
