luna::renderer::shader Class Reference

#include <shader.h>

Inheritance diagram for luna::renderer::shader:

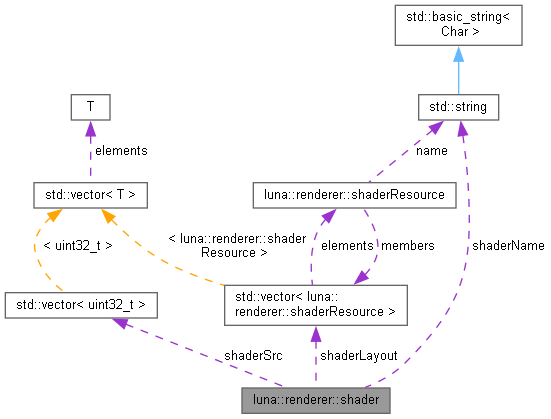

Collaboration diagram for luna::renderer::shader:

Public Member Functions
virtual	~shader ()=default
virtual void	bind () const =0
virtual void	unbind () const =0
virtual void	createLayout ()=0
std::vector< uint32_t >	self ()
	returns the shader compiled source. More...

Static Public Member Functions
static ref< shader >	create (const std::string &filepath, const shaderStage &stage)
	creates a shader from a filepath. More...
static ref< shader >	create (const std::vector< uint8_t > &shaderSrc, const shaderStage &stage)
	creates a shader from compiled code. More...

Public Attributes
std::string	shaderName
std::vector< shaderResource >	shaderLayout
shaderStage	stage
std::vector< uint32_t >	shaderSrc

Friends
class	vulkanDevice

Constructor & Destructor Documentation

~shader()

virtual luna::renderer::shader::~shader ( )

virtualdefault

Member Function Documentation

bind()

virtual void luna::renderer::shader::bind ( ) const

pure virtual

Implemented in luna::vulkan::vulkanShader.

create() [1/2]

ref< shader > luna::renderer::shader::create ( const std::string &  filepath, const shaderStage &  stage  )

static

creates a shader from a filepath.

Parameters

filepath

Returns

a shader reference.

create() [2/2]

ref< shader > luna::renderer::shader::create ( const std::vector< uint8_t > &  shaderSrc, const shaderStage &  stage  )

static

creates a shader from compiled code.

Parameters

shaderSrc

the shader compiled src code

Returns

a shader reference.

createLayout()

virtual void luna::renderer::shader::createLayout ( )

pure virtual

Implemented in luna::vulkan::vulkanShader.

self()

std::vector< uint32_t > luna::renderer::shader::self ( )

inline

returns the shader compiled source.

unbind()

virtual void luna::renderer::shader::unbind ( ) const

pure virtual

Implemented in luna::vulkan::vulkanShader.

Friends And Related Function Documentation

vulkanDevice

friend class vulkanDevice

friend

Member Data Documentation

shaderLayout

std::vector<shaderResource> luna::renderer::shader::shaderLayout

shaderName

std::string luna::renderer::shader::shaderName

shaderSrc

std::vector<uint32_t> luna::renderer::shader::shaderSrc

stage

shaderStage luna::renderer::shader::stage

---

The documentation for this class was generated from the following files:

• C:/Users/robbe/source/repos/lolrobbe2/luna/luna/src/core/rendering/shader.h
• C:/Users/robbe/source/repos/lolrobbe2/luna/luna/src/core/rendering/shader.cpp
