luna::utils::vulkanAllocator Class Reference

#include <vulkanAllocator.h>

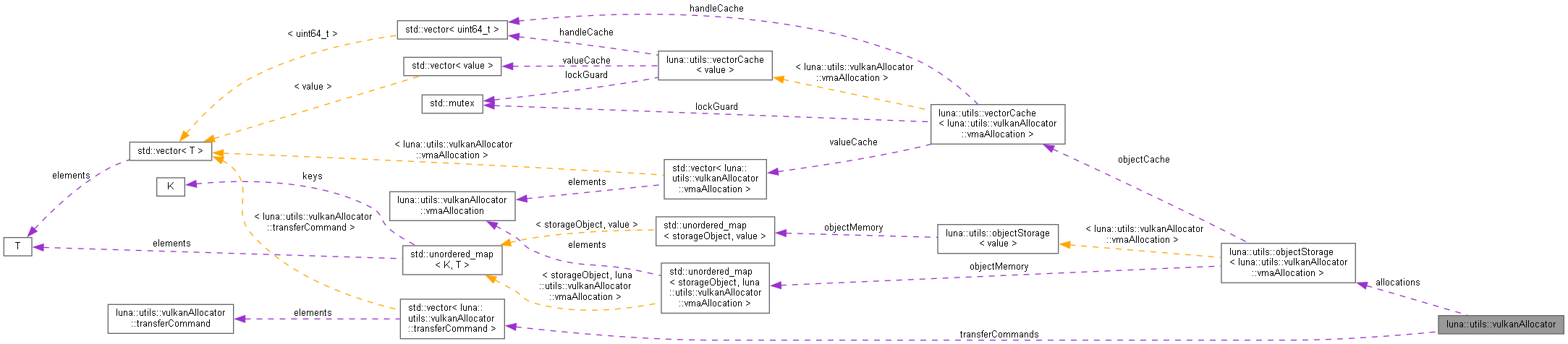

Collaboration diagram for luna::utils::vulkanAllocator:

Classes
struct	transferCommand
struct	vmaAllocation

Static Public Member Functions
static void	init (ref< renderer::device > device)
	allocator constructor. More...
static void	shutdown ()
	destroys the allocator. More...
static VmaAllocationInfo	getAllocationInfo (const uint64_t &handle)
	returns the allocation info from the given handle. More...
static VkResult	createImage (VkImage *pImage, const VkImageUsageFlags &usageFlags, const VmaMemoryUsage &memoryUsage, const VkExtent3D &extent, const VkFormat &format)
	creates a VkImage object. More...
static VkResult	destroyImage (const VkImage &image)
	destroys the VkImage object. More...
static VkResult	createImageView (VkImageView *pImageView, const VkImage &image, const VkFormat &format, const VkImageAspectFlags &imageAspectFlags)
	creates a VkImageView object. More...
static VkResult	destroyImageView (const VkImageView &imageView)
	destroys the VkImageView. More...
static VkResult	createBuffer (VkBuffer *pBuffer, const size_t &allocSize, const VkBufferUsageFlags &usage, const VmaMemoryUsage &memoryUsage, const VmaAllocationCreateFlags &allocFlags=0)
	creates a VkBuffer object. More...
static void	destroyBuffer (VkBuffer &buffer)
	destroys the VkBuffer object. More...
static void	uploadTexture (VkBuffer &buffer, const VkImage &image, const VkFormat &imageFormat, const glm::vec3 &imageDimensions, const glm::vec3 &imageOffset={0, 0, 0}, const glm::vec2 &subImageDimensions={0, 0}, const uint64_t bufferOffset=0)
	uploads a texture to the gpu . More...
static void	flush ()
	executes all recorded transferCommands. More...
static VkFormat	getSuitableFormat (const VkImageUsageFlags &usageFlags, const uint32_t &channels)
	returns a supported VK_FORMAT given a channel amount from 1-4, if no supported format can be found VK_FORMAT_UNDEFINED will be returned More...

Static Private Member Functions
static void	transitionImageLayout (const VkImage &image, const VkFormat &format, const VkImageLayout &oldLayout, const VkImageLayout &newLayout, const vulkan::virtualCmdBuffer &commandBufffer)
	transitions the image layout. More...

Static Private Attributes
static ref< renderer::device >	pDevice
static VmaAllocator	sAllocator
static objectStorage< vmaAllocation >	allocations
static std::vector< transferCommand >	transferCommands
static ref< vulkan::vulkanCmdPool >	commandPool = nullptr
static VkQueue	transferQueue

Member Function Documentation

createBuffer()

VkResult luna::utils::vulkanAllocator::createBuffer ( VkBuffer *  pBuffer, const size_t &  allocSize, const VkBufferUsageFlags &  usage, const VmaMemoryUsage &  memoryUsage, const VmaAllocationCreateFlags &  allocFlags = 0  )

static

creates a VkBuffer object.

Parameters

pBuffer	pointer to the buffer handle
allocSize
usage
memoryUsage

Returns

createImage()

VkResult luna::utils::vulkanAllocator::createImage ( VkImage *  pImage, const VkImageUsageFlags &  usageFlags, const VmaMemoryUsage &  memoryUsage, const VkExtent3D &  extent, const VkFormat &  format  )

static

creates a VkImage object.

Parameters

pImage	pointer to the image handle
usageFlags
memoryUsage	VMA_MEMORY_USAGE
extent	image extend
format	VkImageFormat

Returns

createImageView()

VkResult luna::utils::vulkanAllocator::createImageView ( VkImageView *  pImageView, const VkImage &  image, const VkFormat &  format, const VkImageAspectFlags &  imageAspectFlags  )

static

creates a VkImageView object.

Parameters

pImageView	pointer to imageView handle
image	VkImage handle
format
imageAspectFlags

Returns

destroyBuffer()

void luna::utils::vulkanAllocator::destroyBuffer ( VkBuffer &  buffer )

static

destroys the VkBuffer object.

Parameters

buffer

destroyImage()

VkResult luna::utils::vulkanAllocator::destroyImage ( const VkImage &  image )

static

destroys the VkImage object.

Parameters


Returns

destroyImageView()

VkResult luna::utils::vulkanAllocator::destroyImageView ( const VkImageView &  imageView )

static

destroys the VkImageView.

Parameters

imageView

Returns

flush()

void luna::utils::vulkanAllocator::flush ( )

static

executes all recorded transferCommands.

getAllocationInfo()

VmaAllocationInfo luna::utils::vulkanAllocator::getAllocationInfo ( const uint64_t &  handle )

static

returns the allocation info from the given handle.

Parameters

handle

Returns

VmaAllocationInfo

getSuitableFormat()

VkFormat luna::utils::vulkanAllocator::getSuitableFormat ( const VkImageUsageFlags &  usageFlags, const uint32_t &  channels  )

static

returns a supported VK_FORMAT given a channel amount from 1-4, if no supported format can be found VK_FORMAT_UNDEFINED will be returned

Parameters

usageFlags
channels

Returns

init()

void luna::utils::vulkanAllocator::init ( ref< renderer::device >  device )

static

allocator constructor.

Parameters

ref<renderer::device>

device reference to the device

shutdown()

void luna::utils::vulkanAllocator::shutdown ( )

static

destroys the allocator.

transitionImageLayout()

void luna::utils::vulkanAllocator::transitionImageLayout ( const VkImage &  image, const VkFormat &  format, const VkImageLayout &  oldLayout, const VkImageLayout &  newLayout, const vulkan::virtualCmdBuffer &  commandBufffer  )

staticprivate

transitions the image layout.

Parameters

VkImage	image imageHandle
VkFormat	format
VkImageLayout	oldLayout
VkImageLayout	newLayout
VkCommandBuffer	commandBufffer

uploadTexture()

void luna::utils::vulkanAllocator::uploadTexture ( VkBuffer &  buffer, const VkImage &  image, const VkFormat &  imageFormat, const glm::vec3 &  imageDimensions, const glm::vec3 &  imageOffset = {0,0,0}, const glm::vec2 &  subImageDimensions = {0,0}, const uint64_t  bufferOffset = 0  )

static

uploads a texture to the gpu .

Parameters

buffer	dataBuffer that stores texelData
image	handle to copy texelData in to.

Member Data Documentation

allocations

objectStorage<vmaAllocation> luna::utils::vulkanAllocator::allocations

inlinestaticprivate

commandPool

ref<vulkan::vulkanCmdPool> luna::utils::vulkanAllocator::commandPool = nullptr

inlinestaticprivate

pDevice

ref<renderer::device> luna::utils::vulkanAllocator::pDevice

inlinestaticprivate

sAllocator

VmaAllocator luna::utils::vulkanAllocator::sAllocator

inlinestaticprivate

transferCommands

std::vector<transferCommand> luna::utils::vulkanAllocator::transferCommands

inlinestaticprivate

transferQueue

VkQueue luna::utils::vulkanAllocator::transferQueue

inlinestaticprivate

---

The documentation for this class was generated from the following files:

• C:/Users/robbe/source/repos/lolrobbe2/luna/luna/src/core/vulkan/utils/vulkanAllocator.h
• C:/Users/robbe/source/repos/lolrobbe2/luna/luna/src/core/vulkan/utils/vulkanAllocator.cpp
