vulkan pipline implementation class. More...

#include <vulkanPipeline.h>

Inheritance diagram for luna::vulkan::vulkanPipeline:

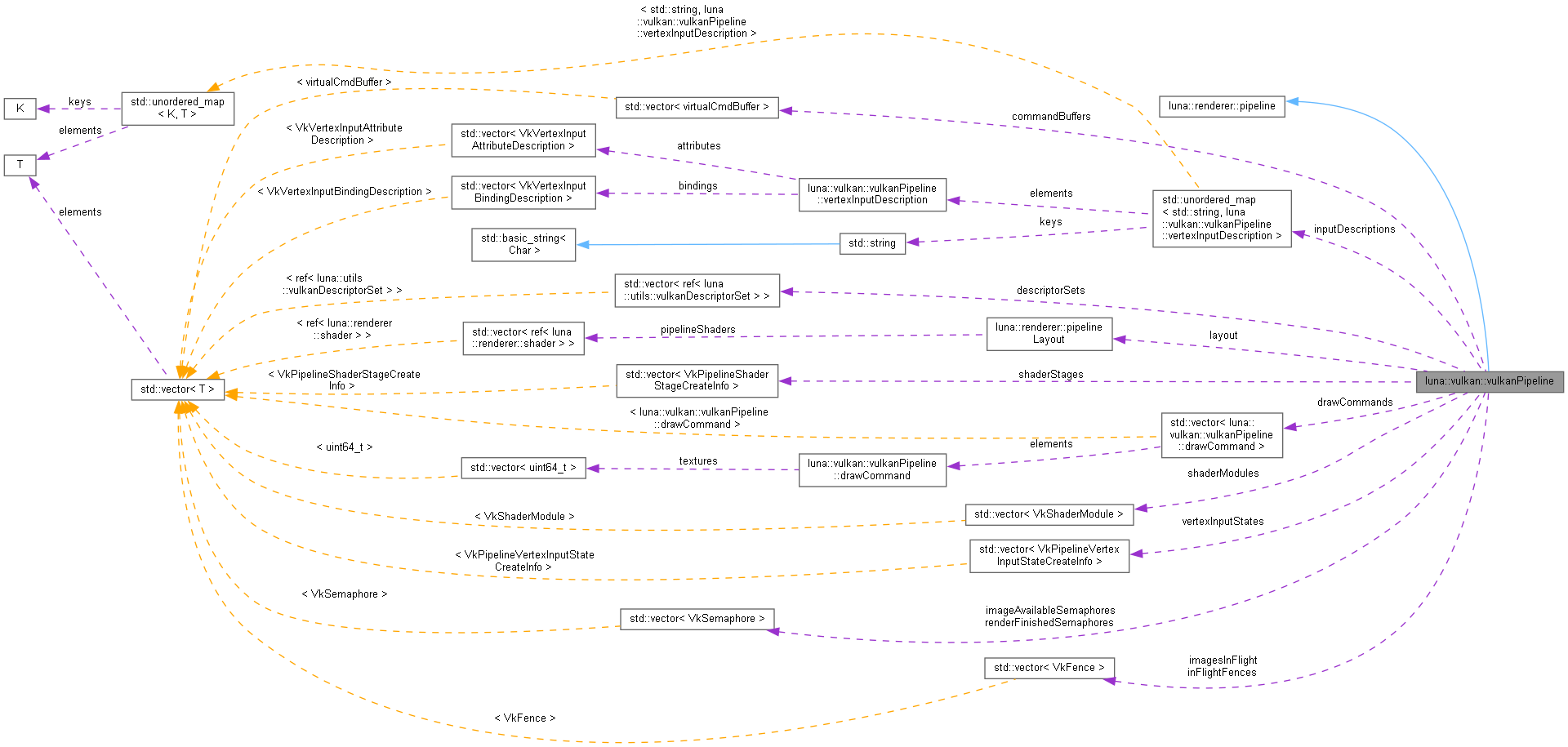

Collaboration diagram for luna::vulkan::vulkanPipeline:

[legend]

Classes
struct	drawCommand

struct	shaderStage

struct	Vertex

struct	vertexInputDescription

Public Member Functions
	vulkanPipeline (const renderer::pipelineLayout &layout)
	creates a vulkan pipeline. More...

virtual	~vulkanPipeline ()
	pipeline destructor. More...

virtual void	createPipeline (const renderer::pipelineLayout &layout) override
	creates the vulkan pipeline. More...

virtual void	destroyPipeline () override
	destroys the vulkan pipeline. More...

virtual void	createCommands () override
	creates the renderer commands for the pipeline. More...

virtual void	begin () override
	starts recording the pipline input. More...

virtual void	end () const override
	ends recording the pipline input. More...

virtual void	flush () override
	executes the pipeline commands. More...

virtual void	bindTextures (const std::vector< uint64_t > textureHandles, const uint64_t indexSet) override
	binds vulkan textures in to there respective textureArrays. More...

virtual void	clear () override
	clears all the vulkan pipeline draw commands. More...

VkRenderPass	getRenderPass ()
	return the pipeline renderpass. More...

virtual void	drawIndexed (const ref< renderer::vertexArray > &vertexArray, std::vector< uint64_t > textures, int indexCount=0) override
	draw a vertexArray indexed. More...

Public Member Functions inherited from luna::renderer::pipeline
virtual	~pipeline ()

virtual void	createPipeline (const pipelineLayout &layout)=0
	creates graphics a pipeline. More...

virtual void	destroyPipeline ()=0
	destroys the graphics pipeline. More...

virtual void	createCommands ()=0
	creates platform specific commands for the rendererPipeline using engine drawCommands. More...

virtual void	begin ()=0
	starts recording pipeline input. More...

virtual void	end () const =0
	ends recording end. More...

virtual void	flush ()=0
	flush the renderer pipline and render a frame. More...

virtual void	drawIndexed (const ref< vertexArray > &vertexArray, std::vector< uint64_t > textures, int indexCount)=0
	draw vertexBuffer with and indexBuffer. More...

virtual void	bindTextures (const std::vector< uint64_t > textureHandles, const uint64_t indexSet)=0
	binds textures in to there respective textureArrays. More...

virtual void	clear ()=0
	clears all drawCommands. More...

glm::vec2	getDimensions ()

glm::vec2	getWindowMousePos ()

Public Attributes
renderer::pipelineLayout	layout

uint32_t	maxFramesInFlight = 0

Public Attributes inherited from luna::renderer::pipeline
int	test

Private Member Functions
void	createPipeLineLayout ()
	creates the pipeline layout. More...

VkResult	buildPipeline (VkDevice device, VkRenderPass pass)
	build the vulkan pipline. More...

void	createShaderStages ()
	creates the shader stages to be used in the pipeline. More...

void	createInputStates ()
	creates the vertex input. More...

VkPipelineVertexInputStateCreateInfo	createVertexInputState (const ref< renderer::shader > shader)
	creates the vertex input state for a single shader. More...

void	createBindingDescription (const ref< renderer::shader > shader)
	creates the binding descriptio for a single shader. More...

void	createAttributeDescription (const ref< renderer::shader > shader)
	creates the attribute description for a single shader. More...

VkResult	createShaderModule (ref< renderer::shader > shader, VkShaderModule *shaderModule)
	creates a shader module from a shader ref. More...

VkFormat	getResourceFormat (renderer::typeId resourceType)
	returns the corresponding resource type for a given . More...

VkPipelineInputAssemblyStateCreateInfo	inputAssemblyCreateInfo (VkPrimitiveTopology topology)
	creates the input Assembly More...

VkPipelineRasterizationStateCreateInfo	rasterizationStateCreateInfo (VkPolygonMode polygonMode)
	creates the rasterizer state create info. More...

VkPipelineMultisampleStateCreateInfo	multisamplingStateCreateInfo ()
	creates the multisampling info. More...

VkPipelineColorBlendAttachmentState	colorBlendAttachmentState ()
	the color blend attachment state(color writemask). More...

VkPipelineLayoutCreateInfo	pipelineLayoutCreateInfo ()
	creates the pipeline layout info. More...

void	initDefaultRenderpass ()
	initialzes the dafault pipeline renderPass. More...

void	initSyncStructures ()
	initializes the the pipeline syncronization structures. (VkFence and VkSemaphore) More...

void	destroySyncStructures ()
	destroys all pipeline sync structures. (VkFence and VkSemaphore) More...

void	transitionImageLayout (VkImage image, VkFormat format, VkImageLayout oldLayout, VkImageLayout newLayout, VkCommandBuffer commandBufffer)
	transitions the image layout. More...

void	fnDrawIndexed (const ref< renderer::vertexArray > &vertexArray, const uint64_t &descriptorIndex, const std::vector< uint64_t > &textures, const int &indexCount)
	executes draw command. More...

VkResult	createDescriptorSetLayout ()

VkAccessFlags	getAccessFlag (VkImageLayout layout)

VkPipelineStageFlags	getStageFlag (VkImageLayout layout)

Private Attributes
ref< renderer::vulkanSampler >	sampler

VkRenderPass	renderPass

VkRenderPass	imGuiRenderPass

VkPipelineLayout	pipelineLayout

VkPipeline	pipeline

std::vector< VkPipelineShaderStageCreateInfo >	shaderStages

std::vector< VkShaderModule >	shaderModules

std::unordered_map< std::string, vertexInputDescription >	inputDescriptions

std::vector< VkPipelineVertexInputStateCreateInfo >	vertexInputStates

VkPipelineInputAssemblyStateCreateInfo	inputAssemblyStateCreateInfo

VkPipelineRasterizationStateCreateInfo	pipelineRasterizationStateCreateInfo

VkPipelineMultisampleStateCreateInfo	pipelineMultisampleStateCreateInfo

VkPipelineColorBlendAttachmentState	pipelineColorBlendAttachementState

std::vector< VkSemaphore >	imageAvailableSemaphores

std::vector< VkSemaphore >	renderFinishedSemaphores

std::vector< VkFence >	inFlightFences

std::vector< VkFence >	imagesInFlight

ref< vulkanCmdPool >	commandPool = nullptr

std::vector< virtualCmdBuffer >	commandBuffers

uint32_t	swapchainImageIndex = 0

uint32_t	currentFrame = 0

uint32_t	prevFrame = 0

VkQueue	presentQueue

uint64_t	_frameNumber = 0

bool	justResized = false

std::vector< drawCommand >	drawCommands

ref< utils::vulkanDescriptorPool >	descriptorPool

std::vector< ref< utils::vulkanDescriptorSet > >	descriptorSets

uint64_t	descriptorsetIndex = 1

Additional Inherited Members
Protected Attributes inherited from luna::renderer::pipeline
glm::vec2	windowMousePos

glm::vec2	windowDimensions

Detailed Description

vulkan pipline implementation class.

See also: renderer::pipeline.

Constructor & Destructor Documentation

◆ vulkanPipeline()

luna::vulkan::vulkanPipeline::vulkanPipeline ( const renderer::pipelineLayout & layout )

creates a vulkan pipeline.

Parameters

renderer::pipelineLayout layout struct

◆ ~vulkanPipeline()

virtual luna::vulkan::vulkanPipeline::~vulkanPipeline ( )

inlinevirtual

pipeline destructor.

Member Function Documentation

◆ begin()

void luna::vulkan::vulkanPipeline::begin ( )

overridevirtual

starts recording the pipline input.

Implements luna::renderer::pipeline.

◆ bindTextures()

void luna::vulkan::vulkanPipeline::bindTextures	(	const std::vector< uint64_t >	textureHandles,
		const uint64_t	indexSet
	)

overridevirtual

binds vulkan textures in to there respective textureArrays.

Parameters

textureHandles
indexSet

Implements luna::renderer::pipeline.

◆ buildPipeline()

VkResult luna::vulkan::vulkanPipeline::buildPipeline	(	VkDevice	device,
		VkRenderPass	pass
	)

private

build the vulkan pipline.

Parameters

VkDevice	device
VkRenderPass	pass

Returns: VK_SUCCES when pipline was succesfully build

◆ clear()

void luna::vulkan::vulkanPipeline::clear ( )

overridevirtual

clears all the vulkan pipeline draw commands.

Implements luna::renderer::pipeline.

◆ colorBlendAttachmentState()

VkPipelineColorBlendAttachmentState luna::vulkan::vulkanPipeline::colorBlendAttachmentState ( )

private

the color blend attachment state(color writemask).

Returns: VkPipelineColorBlendAttachmentState struct

See also: https://registry.khronos.org/vulkan/specs/1.3-extensions/man/html/VkPipelineColorBlendAttachmentState.html

◆ createAttributeDescription()

void luna::vulkan::vulkanPipeline::createAttributeDescription ( const ref< renderer::shader > shader )

private

creates the attribute description for a single shader.

Parameters

ref<renderer::shader> shader reference to a valid shader

◆ createBindingDescription()

void luna::vulkan::vulkanPipeline::createBindingDescription ( const ref< renderer::shader > shader )

private

creates the binding descriptio for a single shader.

Parameters

ref<renderer::shader> shader reference to a valid shader

◆ createCommands()

void luna::vulkan::vulkanPipeline::createCommands ( )

overridevirtual

creates the renderer commands for the pipeline.

Implements luna::renderer::pipeline.

◆ createDescriptorSetLayout()

VkResult luna::vulkan::vulkanPipeline::createDescriptorSetLayout ( )

private

◆ createInputStates()

void luna::vulkan::vulkanPipeline::createInputStates ( )

private

creates the vertex input.

◆ createPipeline()

void luna::vulkan::vulkanPipeline::createPipeline ( const renderer::pipelineLayout & layout )

overridevirtual

creates the vulkan pipeline.

Parameters

renderer::pipelineLayout layout struct

Implements luna::renderer::pipeline.

◆ createPipeLineLayout()

void luna::vulkan::vulkanPipeline::createPipeLineLayout ( )

private

creates the pipeline layout.

◆ createShaderModule()

VkResult luna::vulkan::vulkanPipeline::createShaderModule	(	ref< renderer::shader >	shader,
		VkShaderModule *	shaderModule
	)

private

creates a shader module from a shader ref.

Parameters

ref<renderer::shader>	shader the source shader
shaderModule	pointer to the vulkan shaderModule

Returns: VK_SUCCES when shaderModule was created sucessfully.

◆ createShaderStages()

void luna::vulkan::vulkanPipeline::createShaderStages ( )

private

creates the shader stages to be used in the pipeline.

◆ createVertexInputState()

VkPipelineVertexInputStateCreateInfo luna::vulkan::vulkanPipeline::createVertexInputState ( const ref< renderer::shader > shader )

private

creates the vertex input state for a single shader.

Parameters

ref<renderer::shader> shader reference to a valid shader

Returns: VkPipelineVertexInputStateCreateInfo

◆ destroyPipeline()

void luna::vulkan::vulkanPipeline::destroyPipeline ( )

overridevirtual

destroys the vulkan pipeline.

Implements luna::renderer::pipeline.

◆ destroySyncStructures()

void luna::vulkan::vulkanPipeline::destroySyncStructures ( )

private

destroys all pipeline sync structures. (VkFence and VkSemaphore)

◆ drawIndexed()

void luna::vulkan::vulkanPipeline::drawIndexed	(	const ref< renderer::vertexArray > &	vertexArray,
		std::vector< uint64_t >	textures,
		int	indexCount = `0`
	)

overridevirtual

draw a vertexArray indexed.

Parameters

const	ref<renderer::vertexArray>& vertexArray vertexArray to render
int	indexCount the indices count to render;

Note: check if the indexCount variable is not zero when the rendered quad does not appear;

◆ end()

void luna::vulkan::vulkanPipeline::end ( ) const

overridevirtual

ends recording the pipline input.

Implements luna::renderer::pipeline.

◆ flush()

void luna::vulkan::vulkanPipeline::flush ( )

overridevirtual

executes the pipeline commands.

Implements luna::renderer::pipeline.

◆ fnDrawIndexed()

void luna::vulkan::vulkanPipeline::fnDrawIndexed	(	const ref< renderer::vertexArray > &	vertexArray,
		const uint64_t &	descriptorIndex,
		const std::vector< uint64_t > &	textures,
		const int &	indexCount
	)

private

executes draw command.

◆ getAccessFlag()

VkAccessFlags luna::vulkan::vulkanPipeline::getAccessFlag ( VkImageLayout layout )

private

◆ getRenderPass()

VkRenderPass luna::vulkan::vulkanPipeline::getRenderPass ( )

inline

return the pipeline renderpass.

◆ getResourceFormat()

VkFormat luna::vulkan::vulkanPipeline::getResourceFormat ( renderer::typeId resourceType )

private

returns the corresponding resource type for a given .

Parameters

renderer::typeId resourceType

Returns: VkFormat the corresponding VkFormat for typeId

◆ getStageFlag()

VkPipelineStageFlags luna::vulkan::vulkanPipeline::getStageFlag ( VkImageLayout layout )

private

◆ initDefaultRenderpass()

void luna::vulkan::vulkanPipeline::initDefaultRenderpass ( )

private

initialzes the dafault pipeline renderPass.

◆ initSyncStructures()

void luna::vulkan::vulkanPipeline::initSyncStructures ( )

private

initializes the the pipeline syncronization structures. (VkFence and VkSemaphore)

See also: https://registry.khronos.org/vulkan/specs/1.3-extensions/man/html/VkFence.html; https://registry.khronos.org/vulkan/specs/1.3-extensions/man/html/VkSemaphore.html

◆ inputAssemblyCreateInfo()

VkPipelineInputAssemblyStateCreateInfo luna::vulkan::vulkanPipeline::inputAssemblyCreateInfo ( VkPrimitiveTopology topology )

private

creates the input Assembly

Parameters

topology

Returns

◆ multisamplingStateCreateInfo()

VkPipelineMultisampleStateCreateInfo luna::vulkan::vulkanPipeline::multisamplingStateCreateInfo ( )

private

creates the multisampling info.

Returns: VkPipelineMultisampleStateCreateInfo struct

See also: https://registry.khronos.org/vulkan/specs/1.3-extensions/man/html/VkPipelineMultisampleStateCreateInfo.html

◆ pipelineLayoutCreateInfo()

VkPipelineLayoutCreateInfo luna::vulkan::vulkanPipeline::pipelineLayoutCreateInfo ( )

private

creates the pipeline layout info.

Returns: VkPipelineLayoutCreateInfo struct

See also: https://registry.khronos.org/vulkan/specs/1.3-extensions/man/html/vkCreatePipelineLayout.html

◆ rasterizationStateCreateInfo()

VkPipelineRasterizationStateCreateInfo luna::vulkan::vulkanPipeline::rasterizationStateCreateInfo ( VkPolygonMode polygonMode )

private

creates the rasterizer state create info.

Parameters

polygonMode

Returns: VkPipelineRasterizationStateCreateInfo struct

See also: https://registry.khronos.org/vulkan/specs/1.3-extensions/man/html/VkPipelineRasterizationStateCreateInfo.html

◆ transitionImageLayout()

void luna::vulkan::vulkanPipeline::transitionImageLayout	(	VkImage	image,
		VkFormat	format,
		VkImageLayout	oldLayout,
		VkImageLayout	newLayout,
		VkCommandBuffer	commandBufffer
	)

private

transitions the image layout.

Parameters

VkImage	image imageHandle
VkFormat	format
VkImageLayout	oldLayout
VkImageLayout	newLayout
VkCommandBuffer	commandBufffer

Member Data Documentation

◆ _frameNumber

uint64_t luna::vulkan::vulkanPipeline::_frameNumber = 0

private

◆ commandBuffers

std::vector<virtualCmdBuffer> luna::vulkan::vulkanPipeline::commandBuffers

private

◆ commandPool

ref<vulkanCmdPool> luna::vulkan::vulkanPipeline::commandPool = nullptr

private

◆ currentFrame

uint32_t luna::vulkan::vulkanPipeline::currentFrame = 0

private

◆ descriptorPool

ref<utils::vulkanDescriptorPool> luna::vulkan::vulkanPipeline::descriptorPool

private

◆ descriptorsetIndex

uint64_t luna::vulkan::vulkanPipeline::descriptorsetIndex = 1

private

◆ descriptorSets

std::vector<ref<utils::vulkanDescriptorSet> > luna::vulkan::vulkanPipeline::descriptorSets

private

◆ drawCommands

std::vector<drawCommand> luna::vulkan::vulkanPipeline::drawCommands

private

◆ imageAvailableSemaphores

std::vector<VkSemaphore> luna::vulkan::vulkanPipeline::imageAvailableSemaphores

private

◆ imagesInFlight

std::vector<VkFence> luna::vulkan::vulkanPipeline::imagesInFlight

private

◆ imGuiRenderPass

VkRenderPass luna::vulkan::vulkanPipeline::imGuiRenderPass

private

◆ inFlightFences

std::vector<VkFence> luna::vulkan::vulkanPipeline::inFlightFences

private

◆ inputAssemblyStateCreateInfo

VkPipelineInputAssemblyStateCreateInfo luna::vulkan::vulkanPipeline::inputAssemblyStateCreateInfo

private

◆ inputDescriptions

std::unordered_map<std::string,vertexInputDescription> luna::vulkan::vulkanPipeline::inputDescriptions

private

◆ justResized

bool luna::vulkan::vulkanPipeline::justResized = false

private

◆ layout

renderer::pipelineLayout luna::vulkan::vulkanPipeline::layout

◆ maxFramesInFlight

uint32_t luna::vulkan::vulkanPipeline::maxFramesInFlight = 0

◆ pipeline

VkPipeline luna::vulkan::vulkanPipeline::pipeline

private

◆ pipelineColorBlendAttachementState

VkPipelineColorBlendAttachmentState luna::vulkan::vulkanPipeline::pipelineColorBlendAttachementState

private

◆ pipelineLayout

VkPipelineLayout luna::vulkan::vulkanPipeline::pipelineLayout

private

◆ pipelineMultisampleStateCreateInfo

VkPipelineMultisampleStateCreateInfo luna::vulkan::vulkanPipeline::pipelineMultisampleStateCreateInfo

private

◆ pipelineRasterizationStateCreateInfo

VkPipelineRasterizationStateCreateInfo luna::vulkan::vulkanPipeline::pipelineRasterizationStateCreateInfo

private

◆ presentQueue

VkQueue luna::vulkan::vulkanPipeline::presentQueue

private

◆ prevFrame

uint32_t luna::vulkan::vulkanPipeline::prevFrame = 0

private

◆ renderFinishedSemaphores

std::vector<VkSemaphore> luna::vulkan::vulkanPipeline::renderFinishedSemaphores

private

◆ renderPass

VkRenderPass luna::vulkan::vulkanPipeline::renderPass

private

◆ sampler

ref<renderer::vulkanSampler> luna::vulkan::vulkanPipeline::sampler

private

◆ shaderModules

std::vector<VkShaderModule> luna::vulkan::vulkanPipeline::shaderModules

private

◆ shaderStages

std::vector<VkPipelineShaderStageCreateInfo> luna::vulkan::vulkanPipeline::shaderStages

private

◆ swapchainImageIndex

uint32_t luna::vulkan::vulkanPipeline::swapchainImageIndex = 0

private

◆ vertexInputStates

std::vector<VkPipelineVertexInputStateCreateInfo> luna::vulkan::vulkanPipeline::vertexInputStates

private

The documentation for this class was generated from the following files:

C:/Users/robbe/source/repos/lolrobbe2/luna/luna/src/core/vulkan/rendering/vulkanPipeline.h
C:/Users/robbe/source/repos/lolrobbe2/luna/luna/src/core/vulkan/rendering/vulkanPipeline.cpp

Classes

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ vulkanPipeline()

◆ ~vulkanPipeline()

Member Function Documentation

◆ begin()

◆ bindTextures()

◆ buildPipeline()

◆ clear()

◆ colorBlendAttachmentState()

◆ createAttributeDescription()

◆ createBindingDescription()

◆ createCommands()

◆ createDescriptorSetLayout()

◆ createInputStates()

◆ createPipeline()

◆ createPipeLineLayout()

◆ createShaderModule()

◆ createShaderStages()

◆ createVertexInputState()

◆ destroyPipeline()

◆ destroySyncStructures()

◆ drawIndexed()

◆ end()

◆ flush()

◆ fnDrawIndexed()

◆ getAccessFlag()

◆ getRenderPass()

◆ getResourceFormat()

◆ getStageFlag()

◆ initDefaultRenderpass()

◆ initSyncStructures()

◆ inputAssemblyCreateInfo()

◆ multisamplingStateCreateInfo()

◆ pipelineLayoutCreateInfo()

◆ rasterizationStateCreateInfo()

◆ transitionImageLayout()

Member Data Documentation

◆ _frameNumber

◆ commandBuffers

◆ commandPool

◆ currentFrame

◆ descriptorPool

◆ descriptorsetIndex

◆ descriptorSets

◆ drawCommands

◆ imageAvailableSemaphores

◆ imagesInFlight

◆ imGuiRenderPass

◆ inFlightFences

◆ inputAssemblyStateCreateInfo

◆ inputDescriptions

◆ justResized

◆ layout

◆ maxFramesInFlight

◆ pipeline

◆ pipelineColorBlendAttachementState

◆ pipelineLayout

◆ pipelineMultisampleStateCreateInfo

◆ pipelineRasterizationStateCreateInfo

◆ presentQueue

◆ prevFrame

◆ renderFinishedSemaphores

◆ renderPass

◆ sampler

◆ shaderModules

◆ shaderStages

◆ swapchainImageIndex

◆ vertexInputStates
